Flexible mounting for creators who shoot from every angle

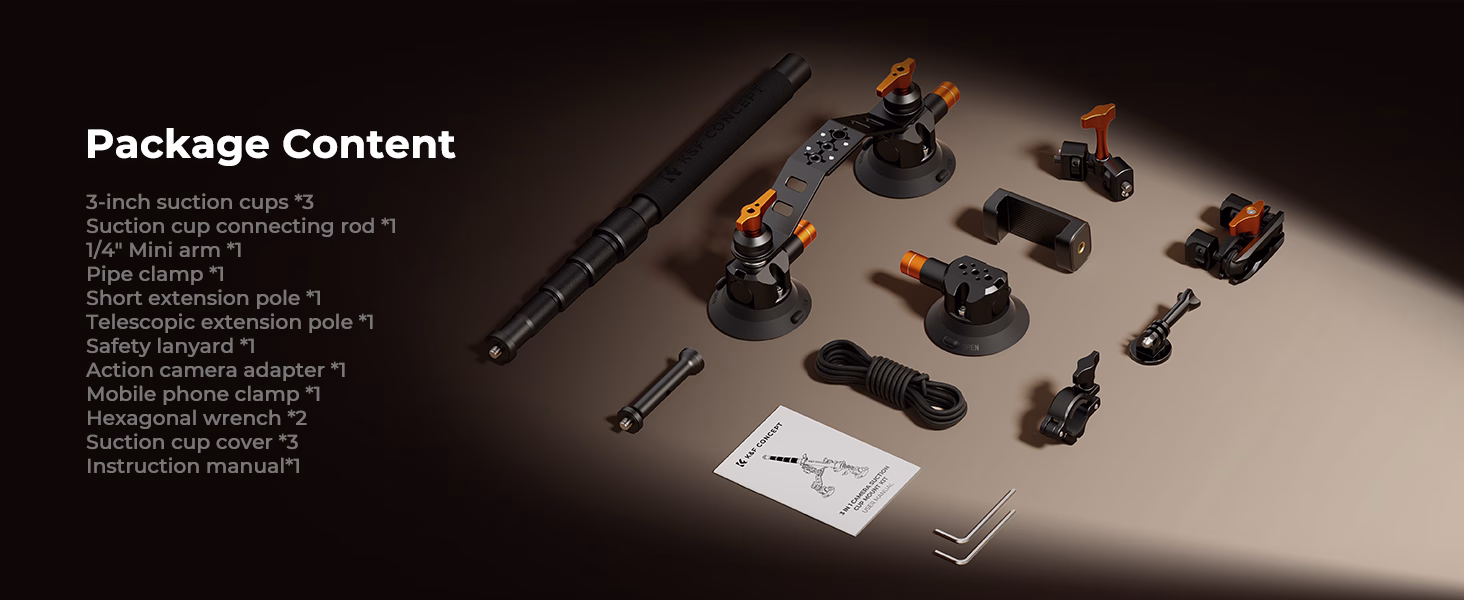

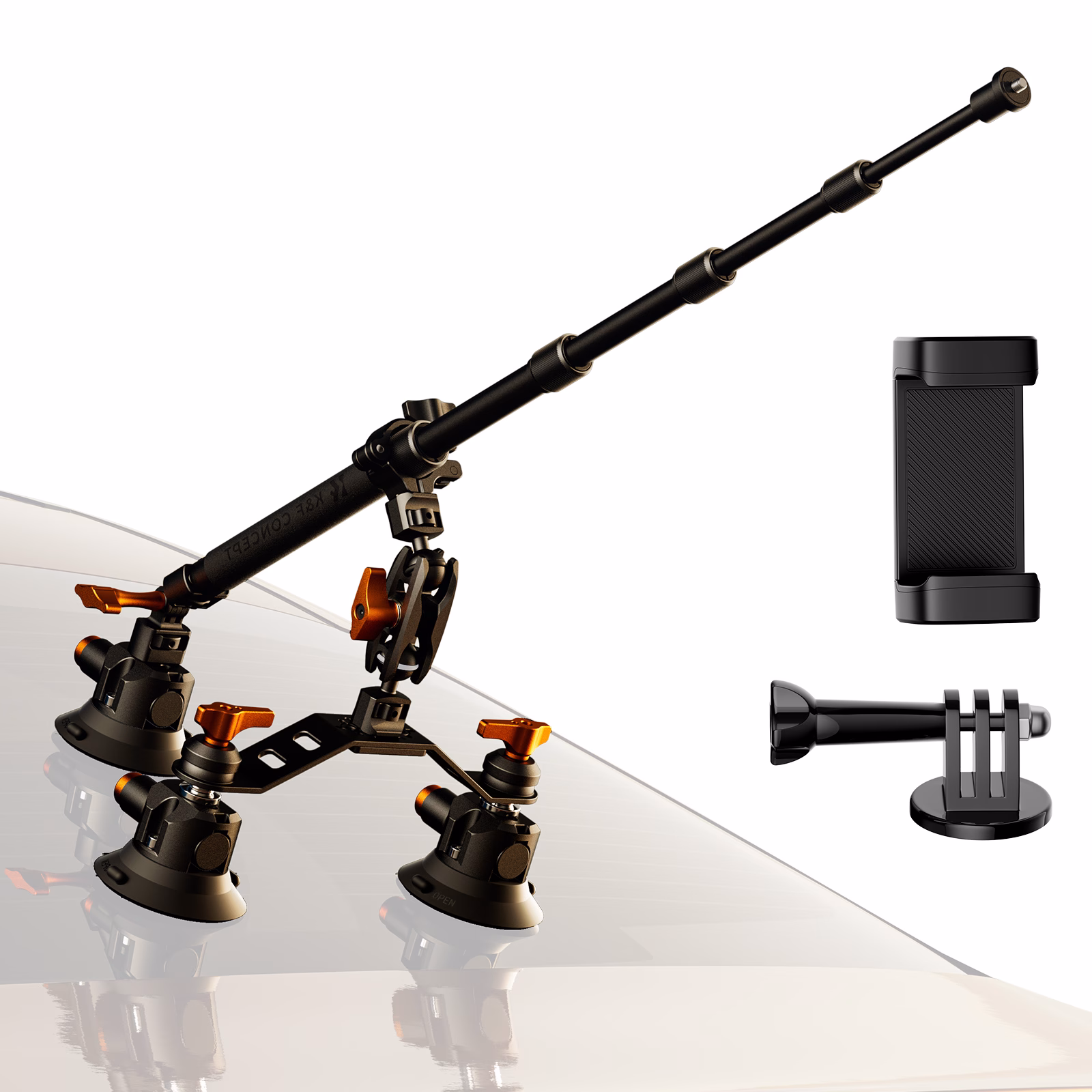

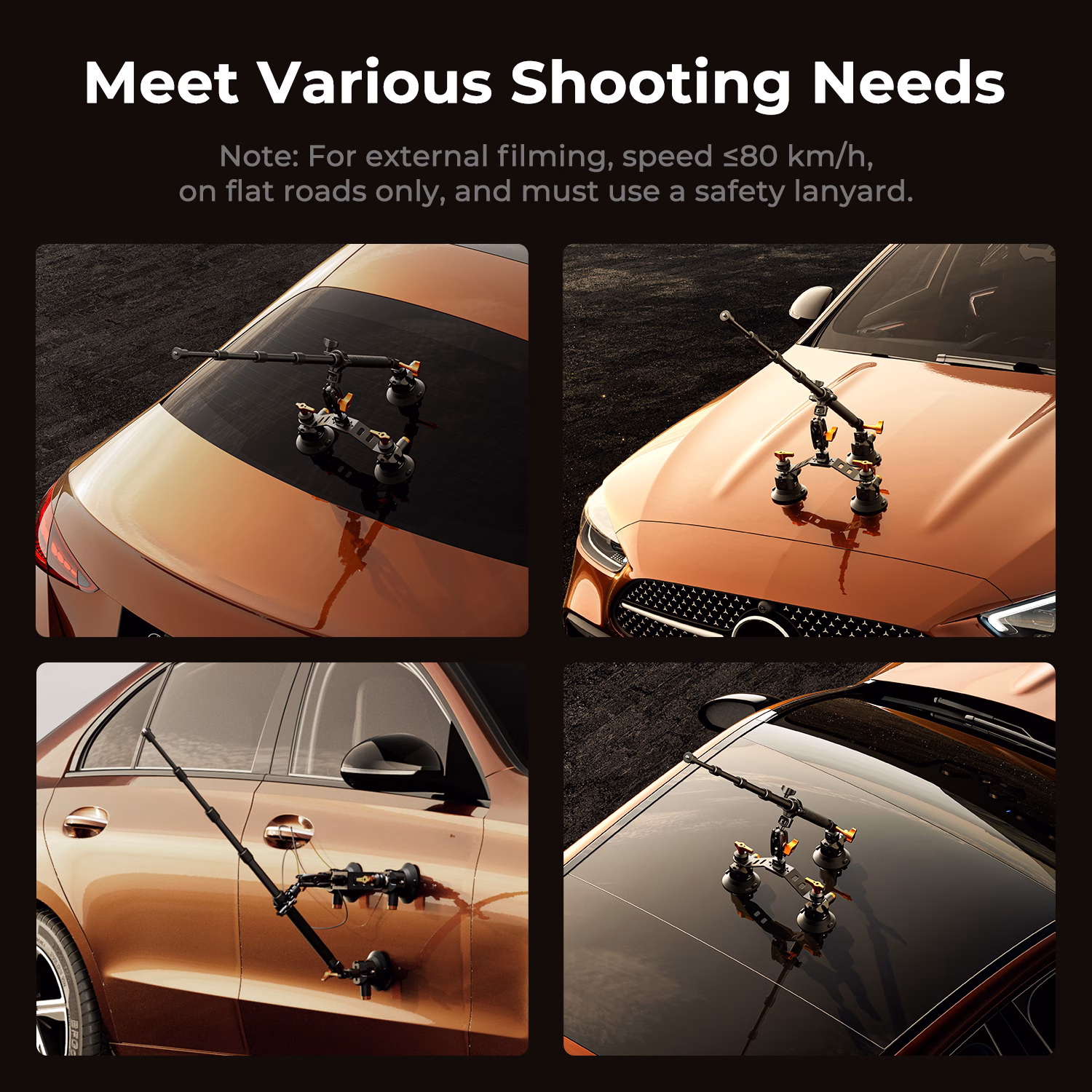

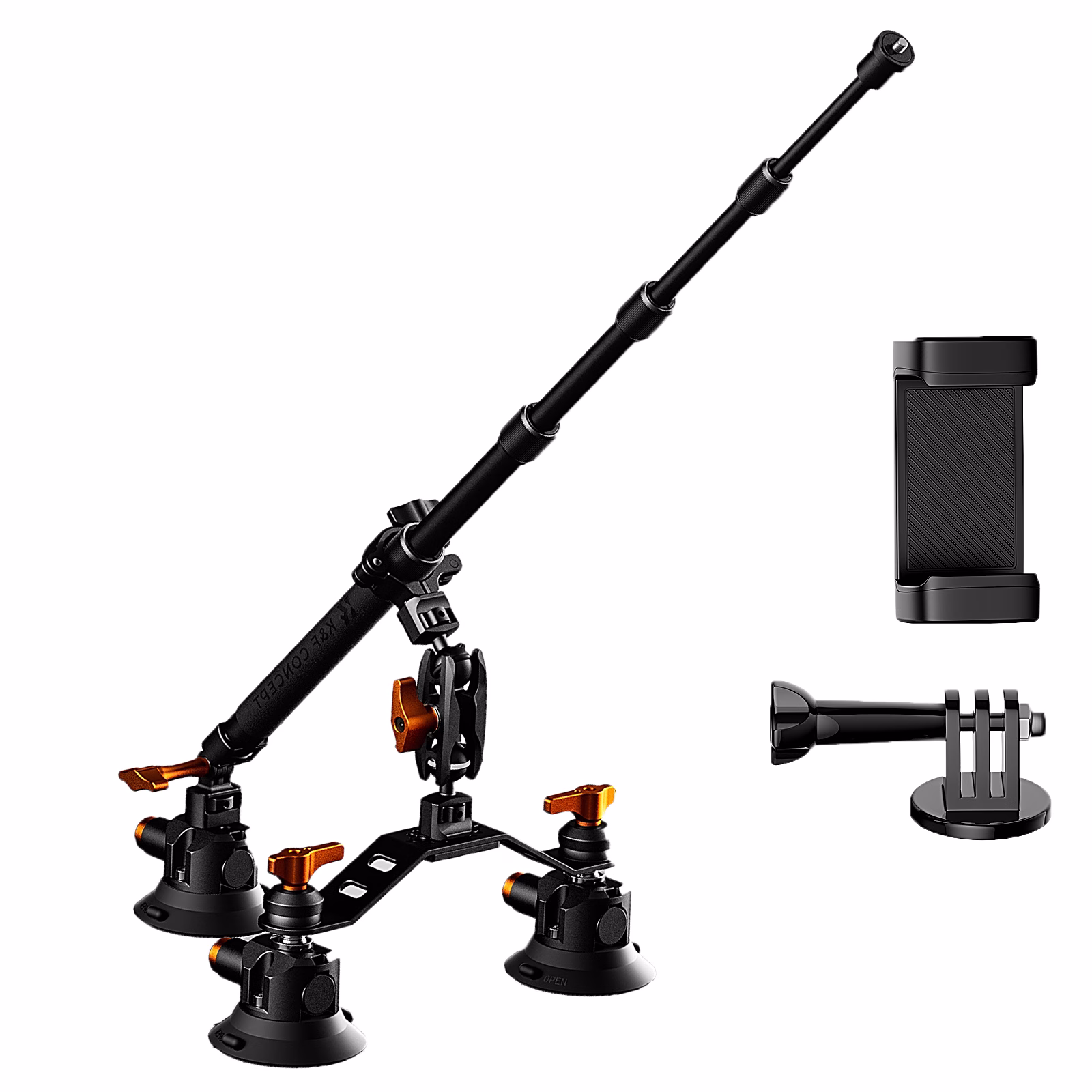

The K&F 3 Point Suction Car Mount Kit with 1.1m Extension Arm | KF31.197 is designed for videographers and content creators who need consistent, controlled camera positioning on vehicle surfaces where traditional tripods cannot reach. Built around three 7.6cm suction cups arranged in a triangular formation, it delivers 20kg horizontal and 12kg vertical load capacity across the combined base. The system includes a four-section telescopic pole extending from 32cm to 110cm, a magic arm with dual ball head, a mobile phone clamp, an action camera adapter, and a pipe clamp that locks the extension pole to the suction base. Mount it to car bonnets for tracking shots, windscreens for POV angles, door panels for side-profile footage, the 15° micro-adjustment allows for mounting even when these surfaces are curved. Where this product excels is that it includes an extension pole. Unlike other suction cups, you can now create distance from the mount, which is particularly good when pointing back at the car to shoot an interior and not look like you mounted to the bonnets surface. The modular design adapts to multiple shooting scenarios: use a single suction cup with the magic arm for low-profile dashboard mounting, deploy dual suction cups for increased stability without the extension pole, or configure the full triple-suction-cup base with extension pole for exterior mounting at speed. The pump-activated vacuum mechanism creates an airtight seal on smooth, flat surfaces, with a visual warning indicator showing when suction pressure drops below safe operating threshold. This mount is built for action filmers capturing POV sequences, automotive reviewers shooting walk-around footage with overhead angles, travel vloggers filming driving sequences, and real estate videographers shooting property approach footage from a moving vehicle.

Triple suction cup stability for vehicle mounting

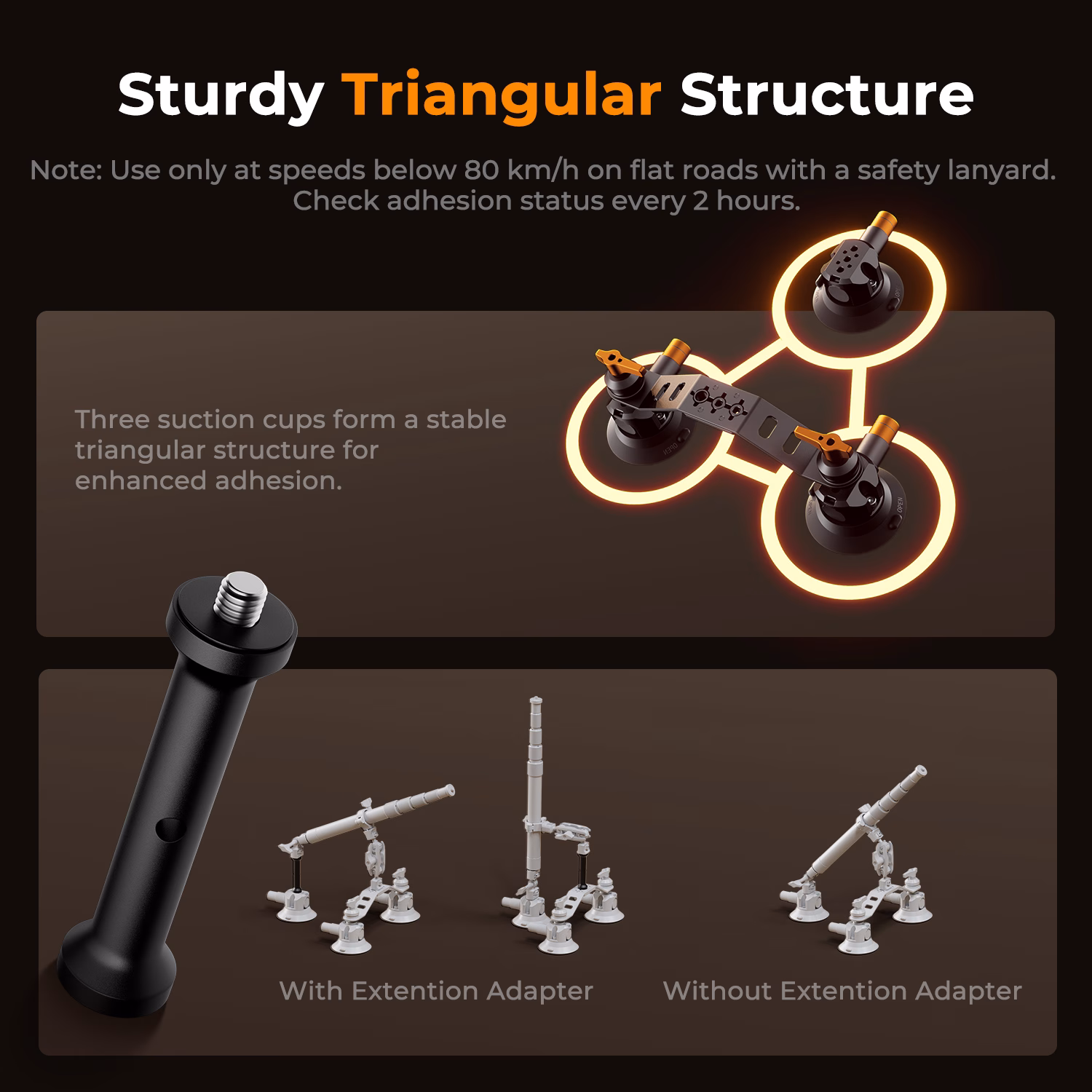

The three 7.6cm suction cups distribute load across three independent vacuum points arranged in an isosceles triangle, creating a stable platform that resists twisting and vibration during vehicle movement. This configuration eliminates the rotation and instability that single-suction-cup mounts suffer from when subjected to road vibration or wind resistance. Each suction cup evacuates air between the rubber foot and mounting surface using a pump-activated mechanism, forming a vacuum seal that holds firm on car bonnets, windscreens, door panels and trunks. Each cup's small footprint allows it to mount to surfaces that are flat relative to the size but across the triangle you're able to accommodate the curvature modern that cars offer. The triangular formation spreads the load evenly, reducing the risk of failure from localised surface imperfections or temperature-induced vacuum loss that can defeat single-point mounts.

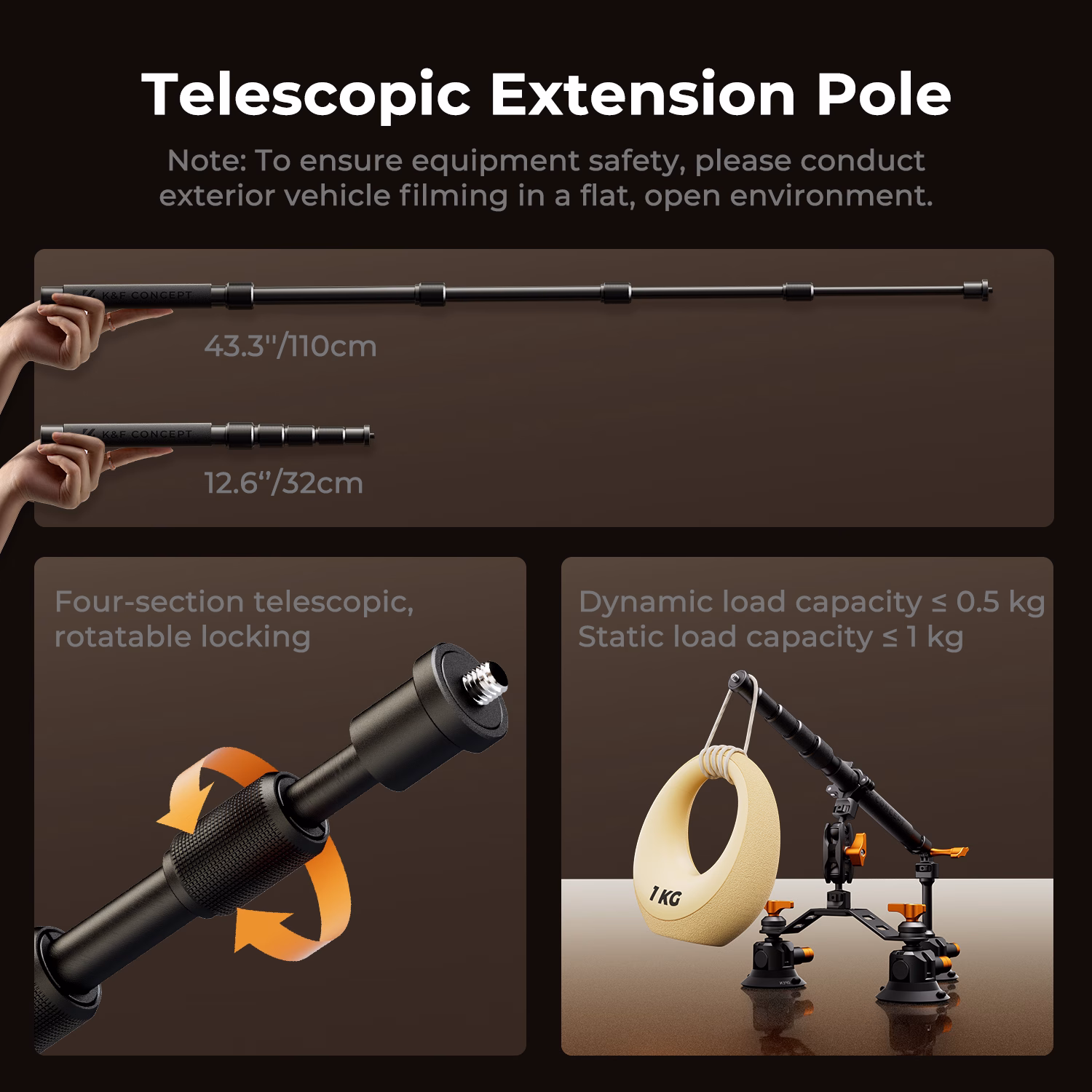

Extension pole for overhead and elevated angles
The telescopic pole extends from 32cm to 110cm across four sections, reaching overhead angles and elevated perspectives without needing a ladder or separate boom arm. The rotatable locking mechanism with extendable pin allows you to adjust reach on the fly, extending the pole mid-shoot to clear a car roof or collapsing it for a lower angle without disassembling the rig. The pole doubles as a handheld selfie stick for panoramic cameras when detached from the suction base, carrying one tool that serves both handheld and vehicle-mounted shooting. The 0.5kg dynamic load capacity (1kg static) keeps action cameras and smartphones stable on the pole without exceeding safe operating limits, though heavier mirrorless setups exceed the pole's capacity even if the suction base can hold them.

Visual warning indicator for suction pressure monitoring

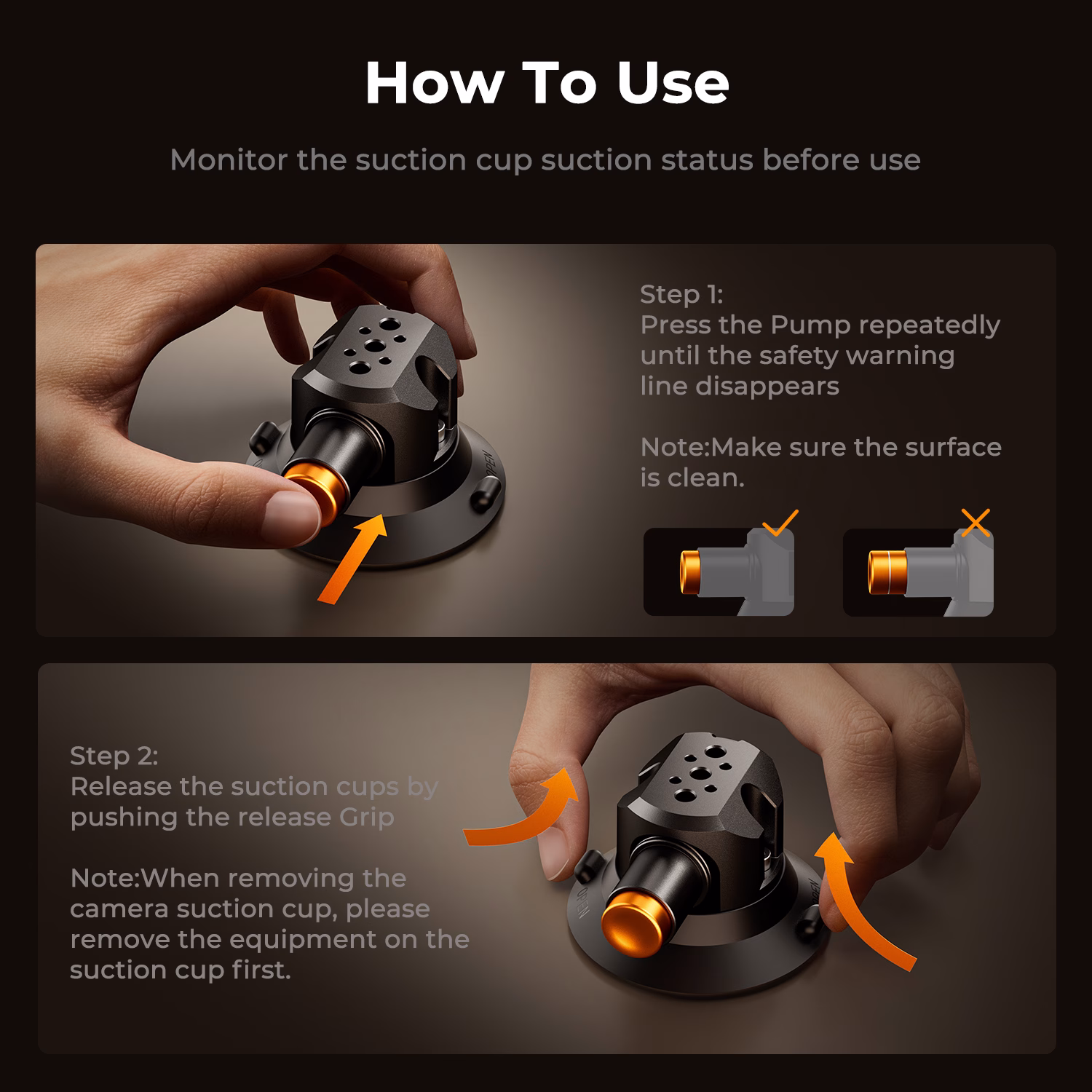

The pump-activated vacuum mechanism includes a visual warning indicator that shows a red band when suction pressure drops below safe operating threshold, alerting you to re-pump before the mount fails. Temperature changes are the primary cause of vacuum loss: a windscreen that is cold in the morning will warm up in direct sunlight, causing the air inside the suction cup to expand and weaken the seal. The visual indicator eliminates guesswork, protecting your camera from a drop by flagging pressure loss before it becomes critical. Check the indicator line between takes and re-pump every 30 minutes during extended shoots to maintain safe suction throughout a full day of filming.

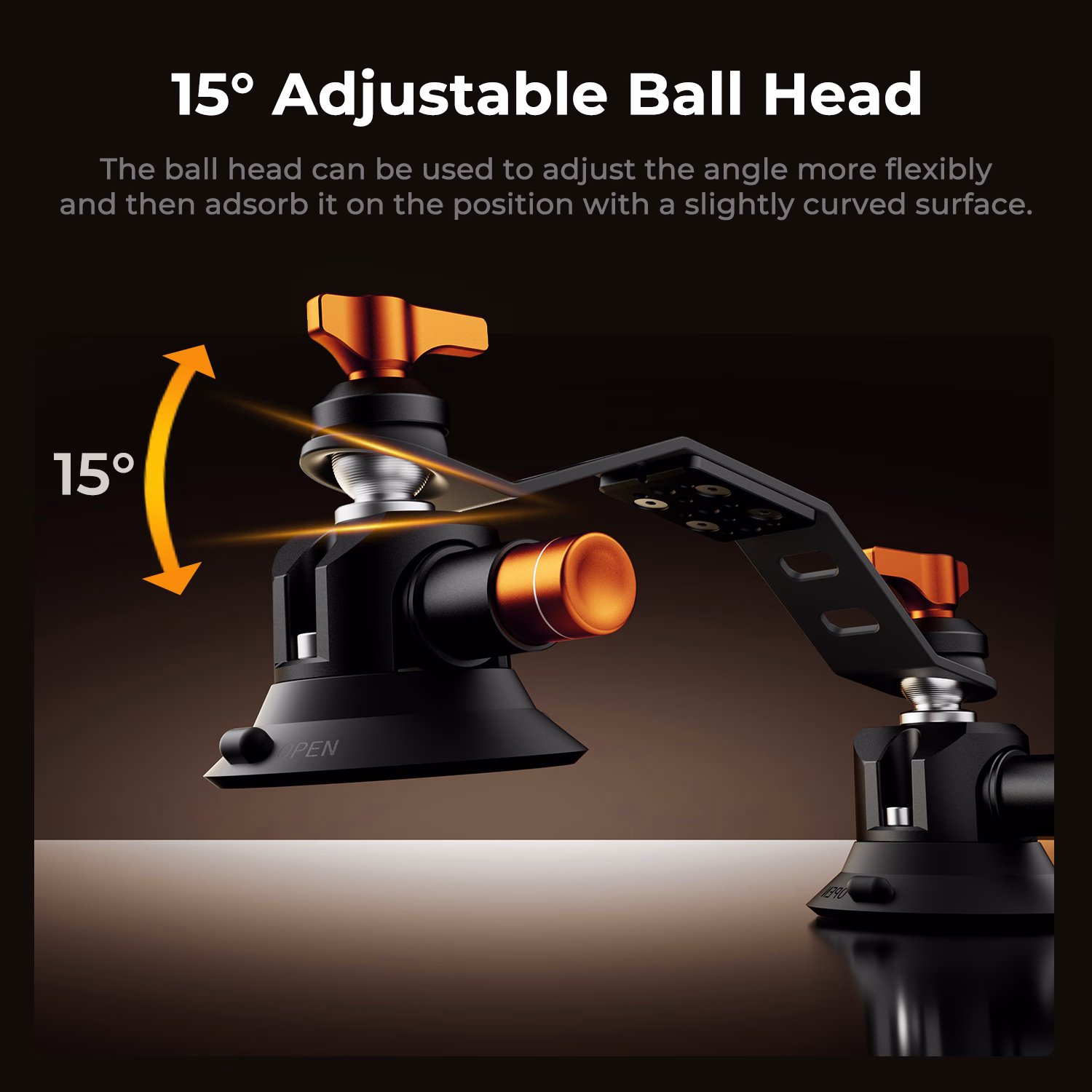

Ball head micro-adjustment for curved surfaces
The 15° ball head adjustment range compensates for the curved contours of car bonnets and windscreens, micro-adjusting camera angle on slightly curved surfaces using independent joints so the camera stays level. Modern car panels have gentle curves that would leave a rigid mount tilted at an unusable angle; the ball head solves this by allowing fine-tuned levelling after the suction cups are attached.

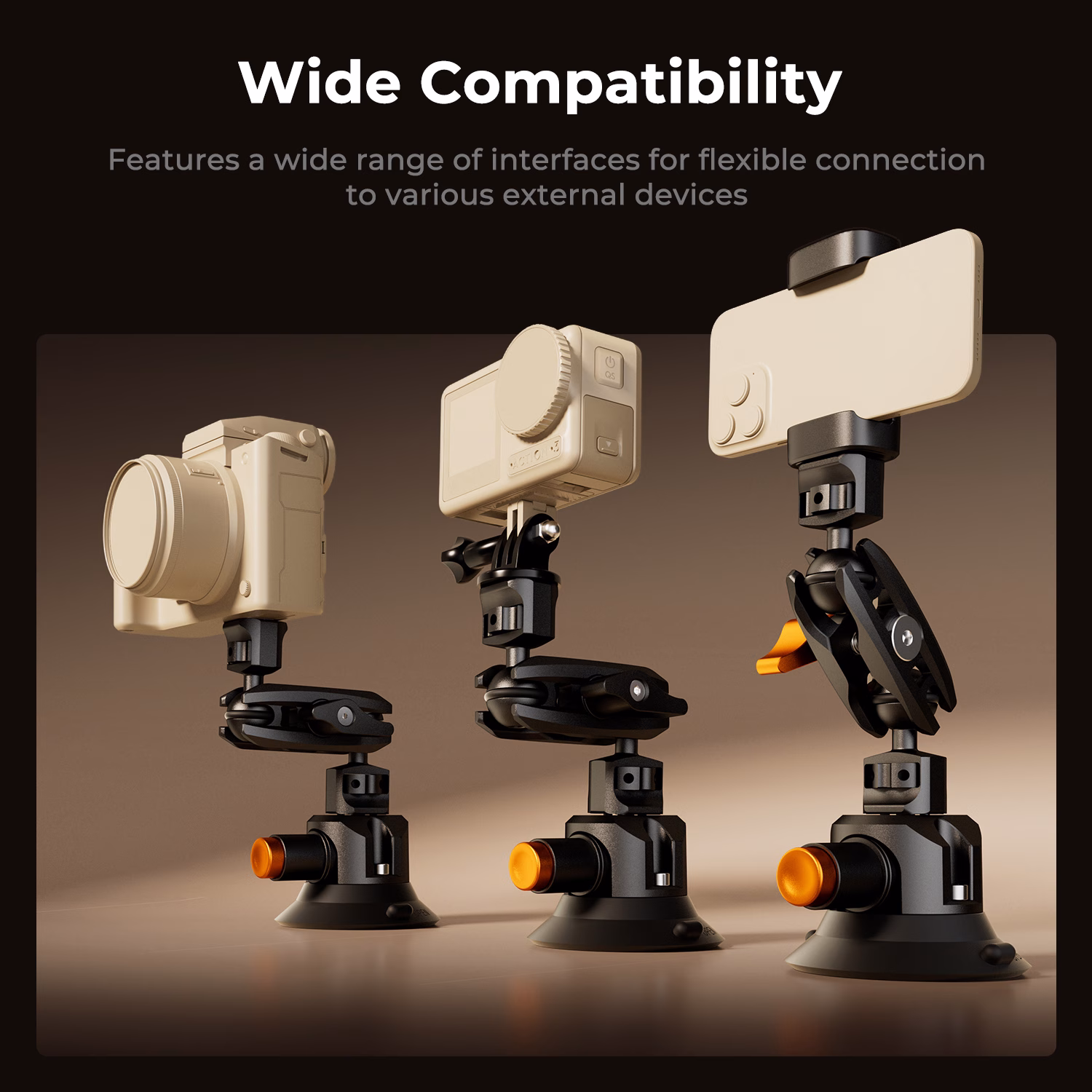

Multi-device compatibility with included adapters
The system mounts action cameras via the included GoPro-compatible adapter and phones via the spring-loaded clamp, covering GoPro Hero, DJI Osmo Action, Insta360 and AKASO Brave models as well as most current smartphones. The 1/4" universal thread accepts standard camera tripod screws, eliminating the need to carry separate mounts for each device type when shooting on location. Switch from a DJI Osmo Action 5 for the main tracking shot to your phone for a quick social media story without changing the suction base, or mount a mirrorless body with a kit lens for higher-quality footage using the same three-point platform.

Modular configuration for multiple shooting scenarios

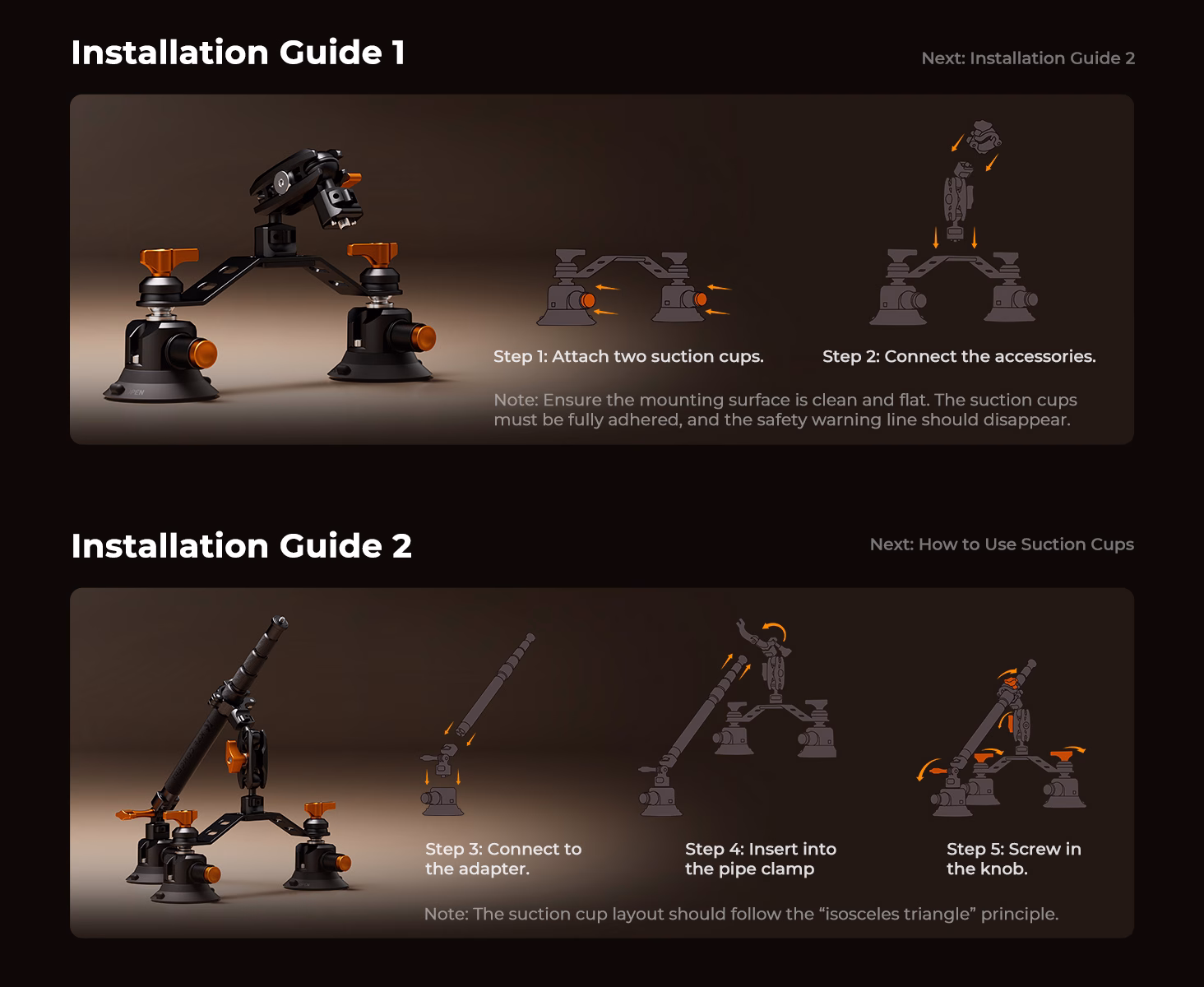

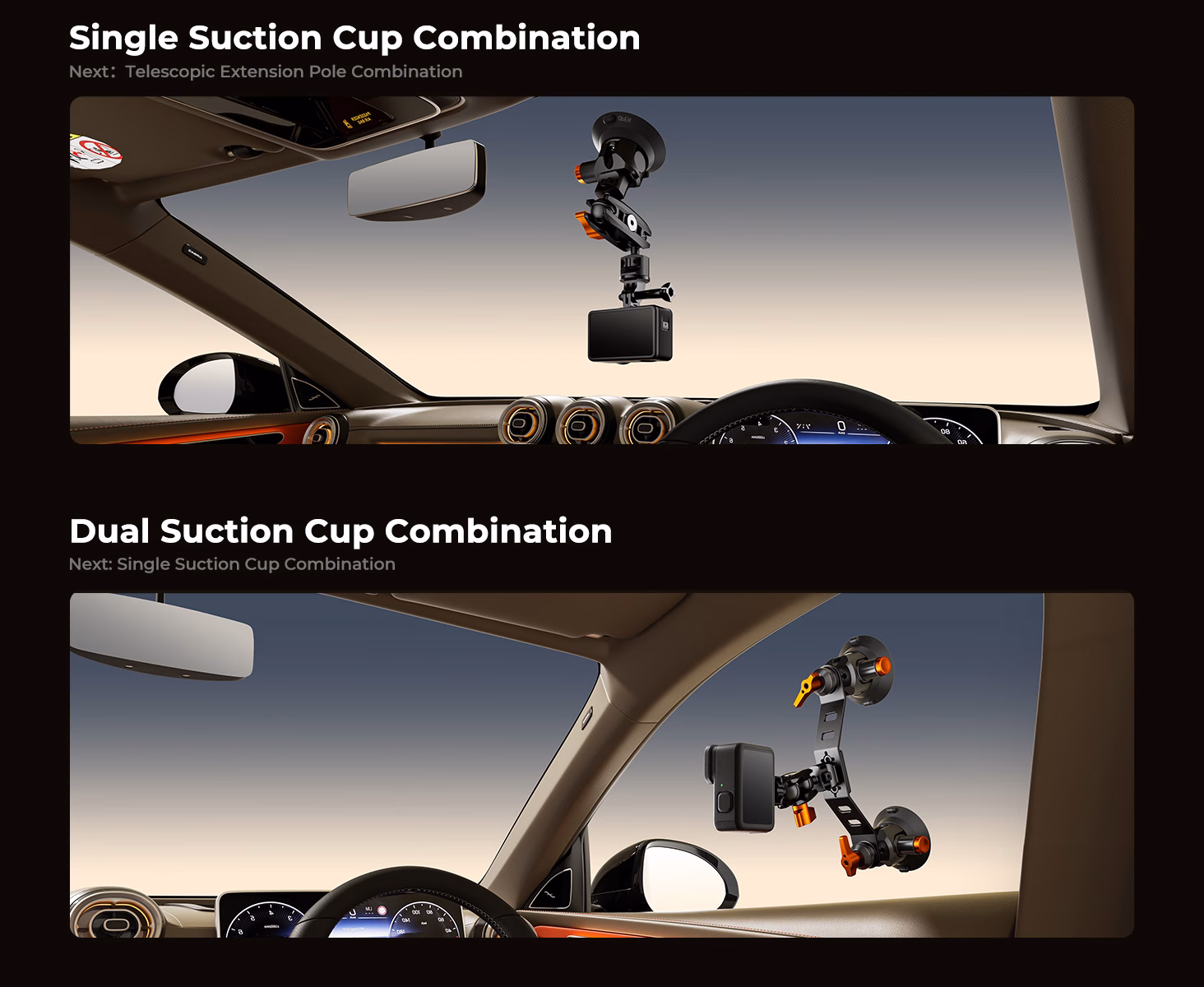

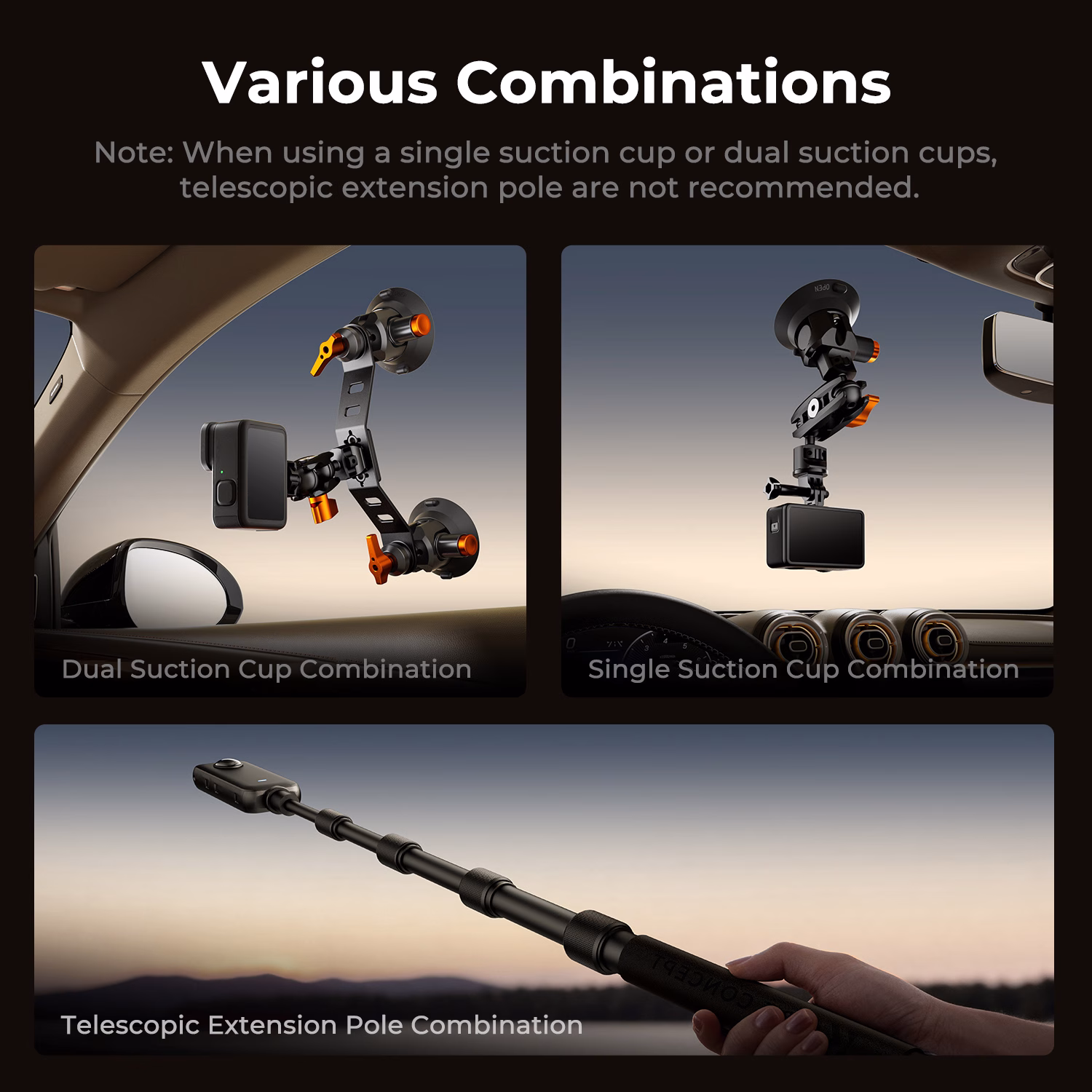

The pipe clamp and short extension adapter post connect the extension pole to the suction cup base, allowing modular configurations that scale to match the shoot. Use just the suction cups and magic arm for a low-profile dashboard phone mount, add a second cup for increased stability when filming through the windscreen, or deploy the full triple-cup base with extension pole for exterior mounting at speed. The quick release grip mechanism breaks the vacuum seal instantly by pushing the release grip, allowing fast removal without prying tools or risk of scratching the car's windscreen or bonnet when de-rigging from a client's vehicle.

The K&F 3 Point Suction Car Mount Kit with 1.1m Extension Arm | KF31.197 is a practical solution for content creators who need flexible, reliable vehicle mounting across action cameras, smartphones and lighter mirrorless bodies. With modular configuration options, visual suction monitoring, and wide device compatibility, it adapts to the angles and workflows modern creators require. Order the KF31.197 today and capture the vehicle-based footage your audience expects.

Frequently Asked Questions

Frequently Asked Questions:
Q: Can I use the extension pole with just one or two suction cups instead of all three?
A: No. The manufacturer specifies that the extension pole must only be used with the full triple-suction-cup configuration and pipe clamp adapter. Single or dual suction cup setups are limited to the magic arm and direct camera mounting without the pole. The extension pole creates significant leverage that exceeds the capacity of one or two suction points, especially when extended to 110cm. Using fewer than three suction cups with the pole attached risks mount failure and camera damage.

Q: What happens if I exceed the 80km/h speed limit with the mount attached to the outside of a moving vehicle?
A: Speeds above 80km/h generate airflow forces and vibration that can overcome the vacuum seal. The 80km/h limit is a hard ceiling, not a guideline. Additionally, the mount is only rated for flat, paved roads. Rough surfaces, gravel tracks or off-road conditions introduce impact forces that will break the seal regardless of speed. If your shoot requires higher speeds or rough terrain, this mount is not suitable for exterior vehicle use.

Q: How much weight can I actually put on the extension pole when it is fully extended to 110cm?
A: The extension pole has a 0.5kg dynamic load capacity (1kg static), which covers action cameras like a GoPro Hero 13, DJI Osmo Action 5 or Insta360 X4, plus a small accessory like a microphone adapter. A smartphone in the included clamp also stays within limits. Mirrorless cameras, even compact models like a Sony A6400 or Fujifilm X-T5, exceed the pole's capacity once you add a lens. The suction base can hold 20kg horizontal, but the pole itself becomes the limiting factor when extended. Keep the pole for action cameras and phones; use the suction cups with the magic arm for heavier gear.

Q: Will this work on a car bonnet with a slight curve or contour?
A: The 15° ball head micro-adjustment compensates for gentle curves found on modern car bonnets and windscreens, allowing the mount to achieve a secure seal on surfaces that would defeat a rigid suction base. However, heavily curved panels like wheel arches, rounded door edges or sharply contoured bonnets will not form an airtight seal. Run your hand across the intended mounting area: if the surface feels flat across the span of all three suction cups arranged in a triangle, it will work. If you can feel a pronounced curve, the mount will not hold.

Q: How often do I need to check and re-pump the suction during a shoot?
A: There are a lot of factors to take into account and so it is worth checking between every take. Multiple environmental factors will have an effect on the vacuum and these can change quite quickly. Temperature is the primary cause of vacuum loss: a windscreen that is cold in the morning will warm up in direct sunlight, causing the air inside the suction cup to expand and weaken the seal. Always check the visual warning indicator before starting a take and between setups. If you see the red warning band on the pump body, stop investigate the potential cause and add several pumps until the line disappears. During extended shoots spanning morning to afternoon, expect to re-pump frequently as the vehicle heats up.

Q: Can I use this mount on interior surfaces like a dashboard or centre console?
A: Yes, as long as the surface is smooth, flat and non-porous. Gloss-finished dashboards, windscreens and side windows work well. Textured vinyl dashboards, leather-grain surfaces or soft-touch plastics will not form an airtight seal. The suction cup needs a completely flat contact area to evacuate air and create the vacuum. If you can feel texture with your fingertip, the mount will not hold. For interior mounting, you typically do not need all three suction cups; a single cup with the magic arm is sufficient for dashboard phone mounting or windscreen POV shots.

Technical Specifications:
 - Suction Cup Diameter: 7.6cm
 - Horizontal Load Capacity: 20kg
 - Vertical Load Capacity: 12kg
 - Extension Pole Length: 32-110cm (4 telescoping sections)
 - Extension Pole Dynamic Load Capacity: 0.5kg (1kg static)
 - Mounting Thread: 1/4"
 - Suction Mechanism: Pump-activated vacuum with visual warning indicator
 - Maximum Speed for Exterior Vehicle Use: 80km/h (flat roads only, safety lanyard required)
