Secure creative mounting for cameras in demanding environments

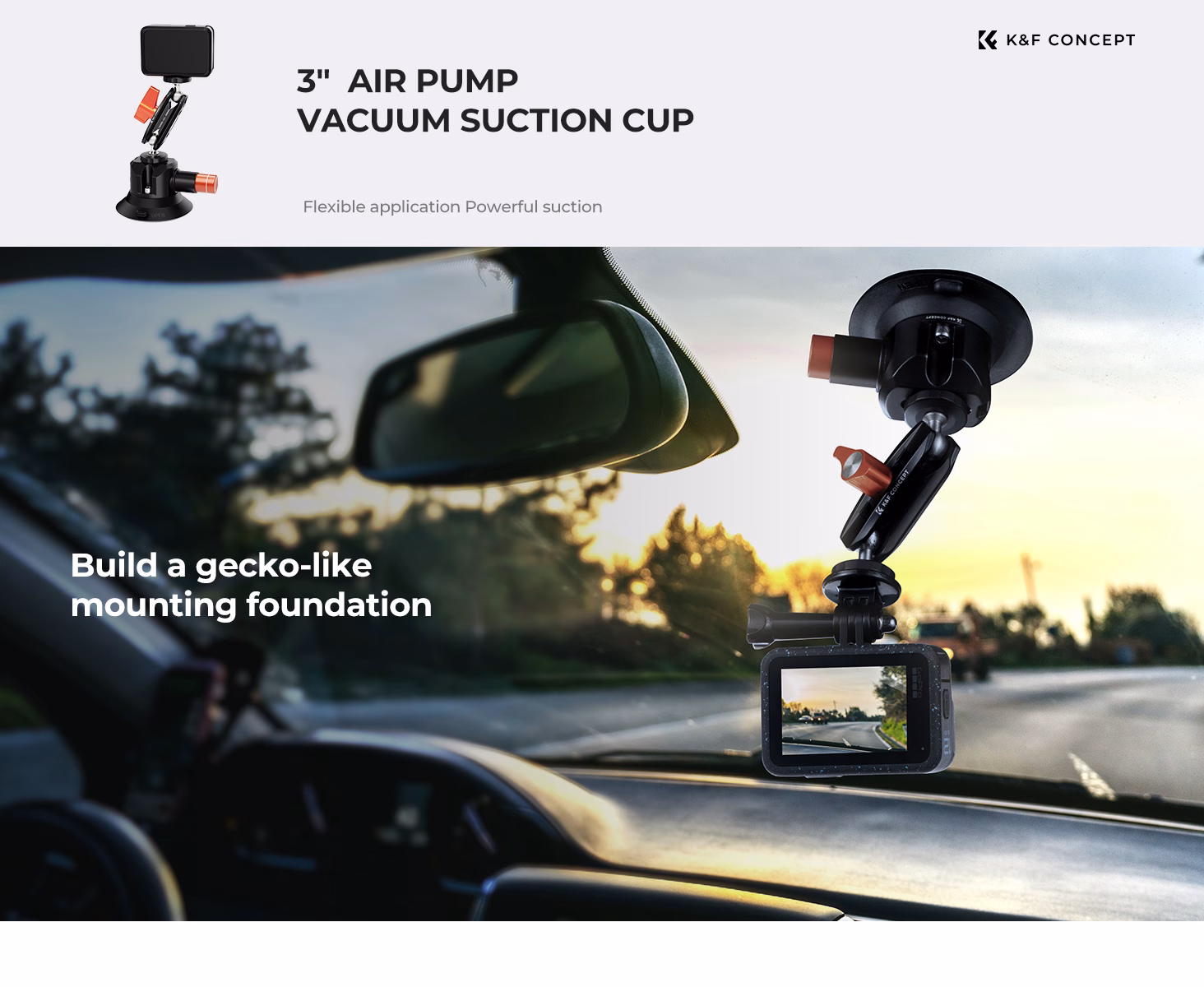

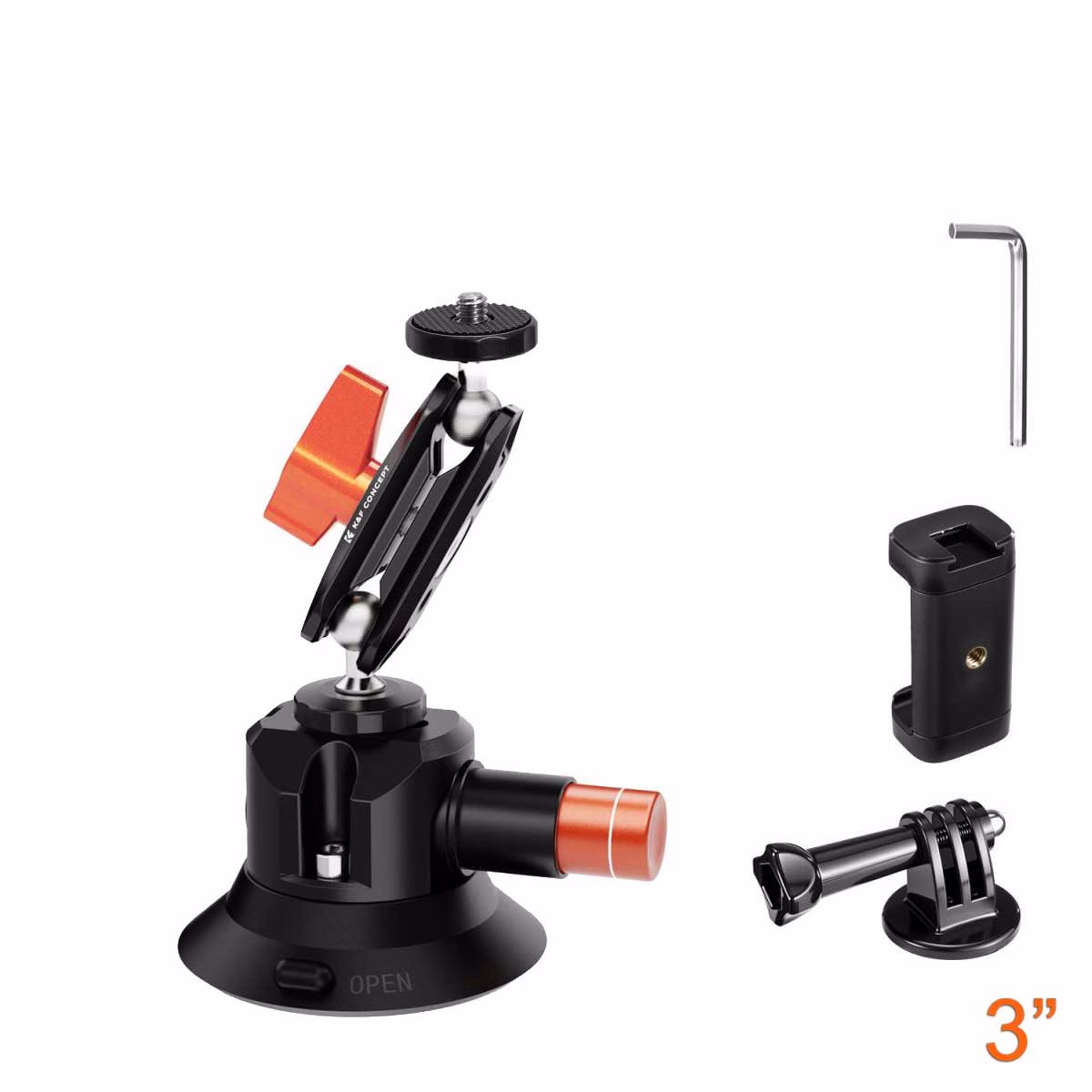

The K&F Concept 3" Suction Cup Camera Mount | KF31.135 is designed for photographers and videographers who need a portable, adaptable mounting solution for vehicle-based shoots, windscreen or dashboard camera placement, window-mounted time-lapses or tabletop setups where traditional tripods won't fit. The ~8cm suction base uses a pump-activated vacuum mechanism to attach securely to smooth, flat surfaces without drilling or leaving marks, making it ideal for car bonnets, windscreens, glass windows and polished tables. The included magic arm features dual ball heads with 360° rotation and a 2kg load capacity, controlled by a single quick-lock knob, allowing precise positioning without needing to reposition the base. The system works across multiple devices, the included phone mount and action camera adapter mean you can switch between smartphone, action cam and lighter mirrorless setups using the same suction point. With aluminium construction, ARRI locating pin compatibility and a dedicated safety rope attachment point, this mount delivers professional-grade stability in a compact 237g package that fits in a daypack.

Secure vacuum attachment without surface damage

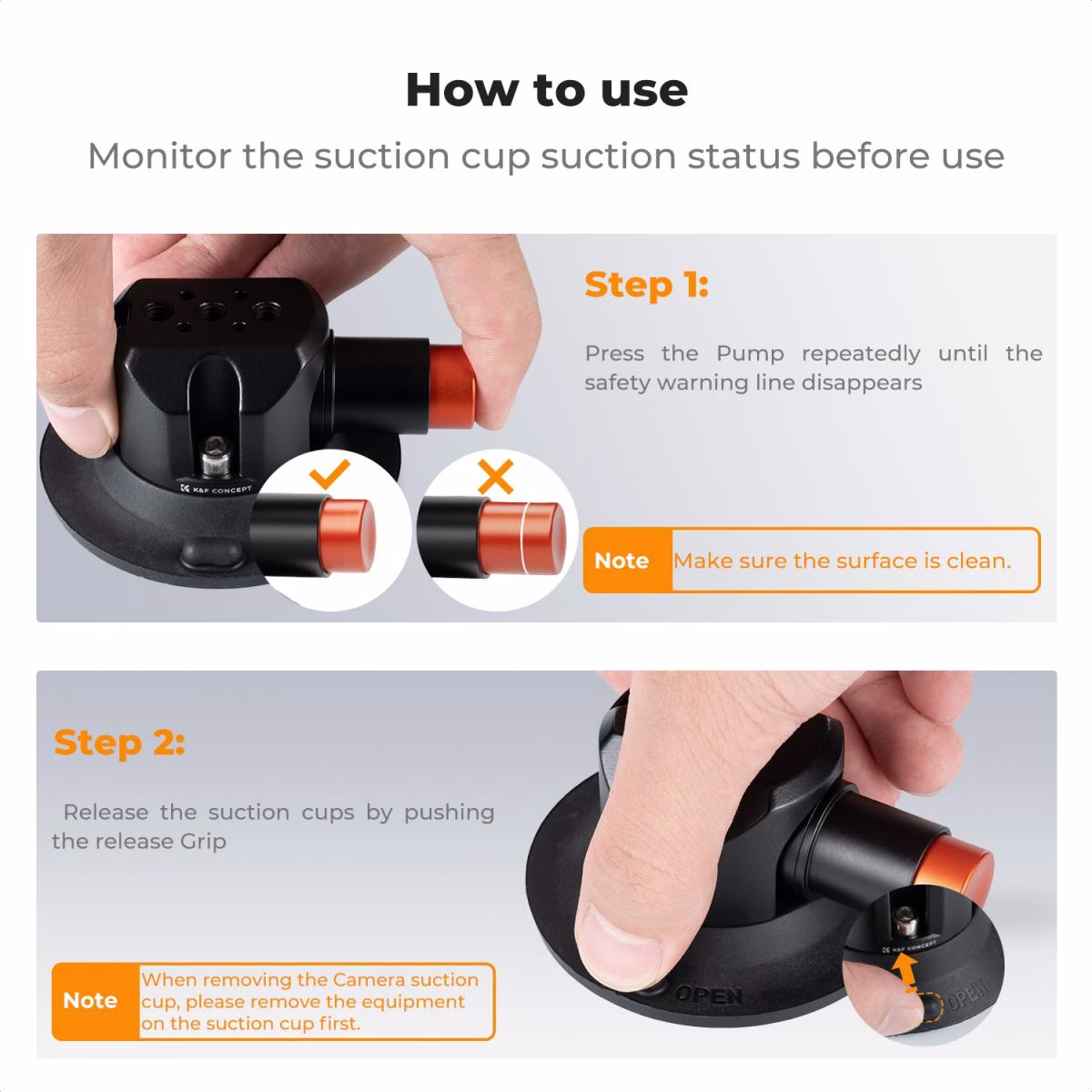

The suction cup creates a strong vacuum seal on any smooth, non-porous surface by evacuating air between the rubber foot and the mounting surface. This allows you to attach cameras to car windscreens, bonnets, door panels, ceramic tiles and sealed wooden tabletops without drilling holes or leaving adhesive residue. The pump-activated mechanism provides visible confirmation of grip strength, you press the pump repeatedly until the warning line disappears, then check it periodically during shoots. Quick-release grip tabs break the vacuum seal instantly by pushing two tabs inward, allowing fast removal without prying tools or risk of scratching the glass or paintwork. This makes the mount particularly useful for vehicle shoots where you need to rig and de-rig quickly without damaging the client's car.

Load capacity for professional camera systems

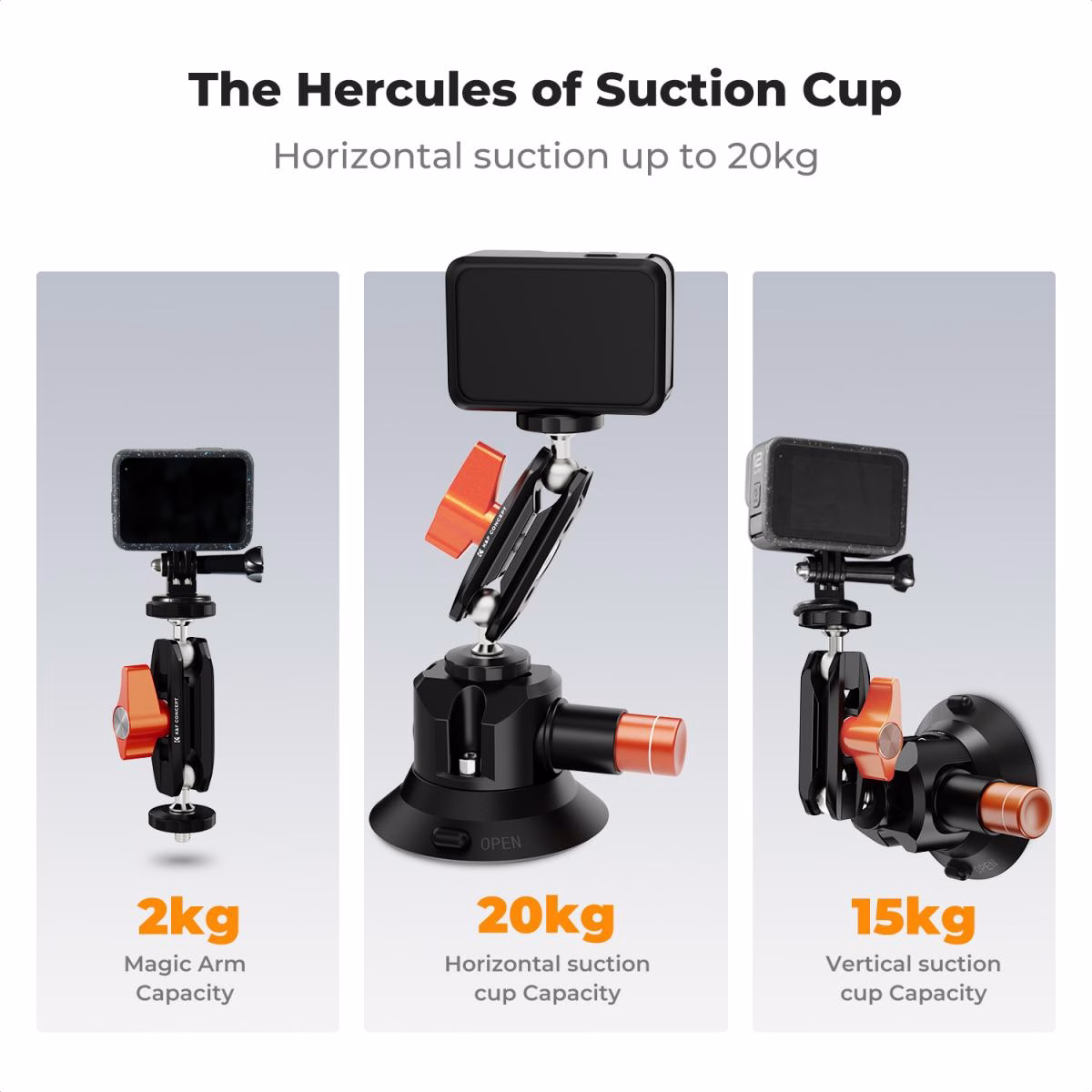

With 20kg horizontal and 15kg vertical load capacity, the suction cup itself can support full-frame DSLRs with telephoto lenses mounted on smooth surfaces at any angle. This provides confidence when mounting heavier gear to car bonnets for tracking shots or windscreens for POV sequences. The magic arm has a 2kg load capacity, which accommodates action cameras, smartphones, compact cameras and lighter mirrorless bodies with kit lenses comfortably. Heavier DSLR bodies with mid-range zooms will exceed the arm's capacity even if the suction cup can hold them, so the arm becomes the limiting factor for camera rigs rather than the suction base. K&F Concept offers larger Suction cup sizes offering solutions for bigger setups.

Magic arm articulation for precise framing

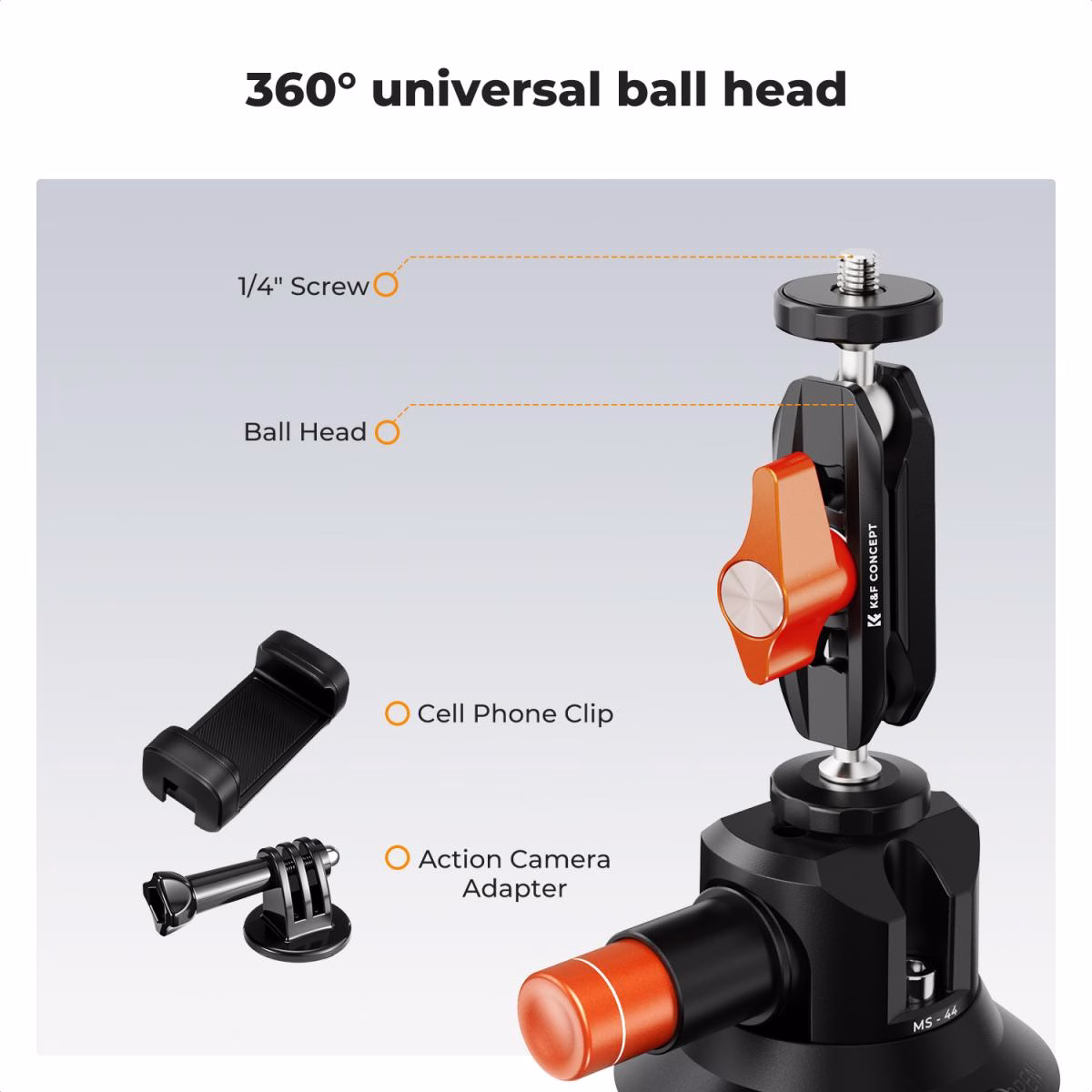

The included magic arm uses dual ball heads with 360° rotation, allowing you to position a camera or accessory at any angle using a single quick-lock knob. This means you can frame a dashboard POV shot, then pivot to a side-window angle without remounting the suction base, which is critical when the suction point is the only viable attachment location in a vehicle interior. The articulation reduces setup time and allows fine adjustments during a shoot without needing to break the vacuum seal and reposition the entire mount. For working professionals, this translates to faster turnarounds between takes and the ability to capture multiple angles from a single mounting position.

Multi-device support with included adapters

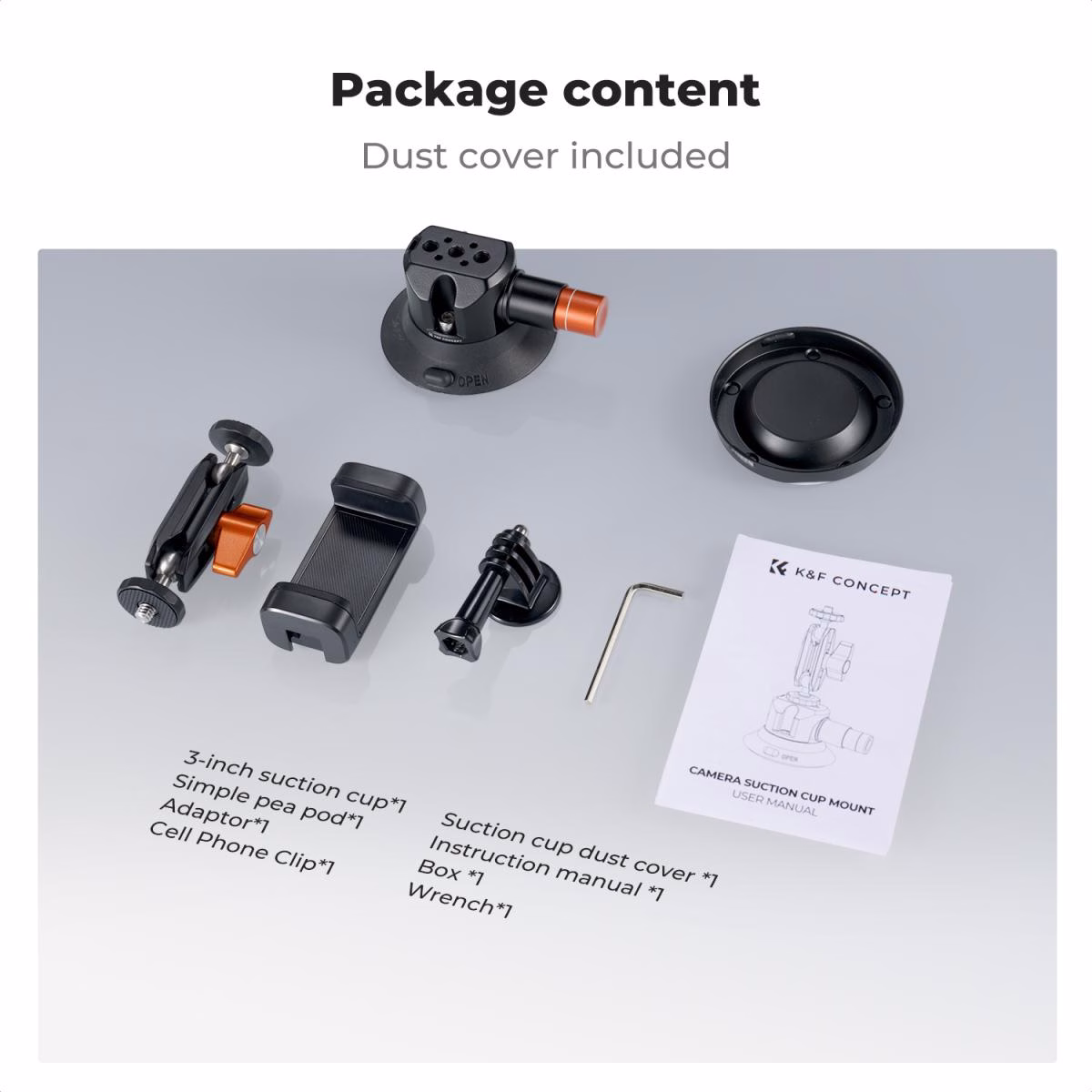

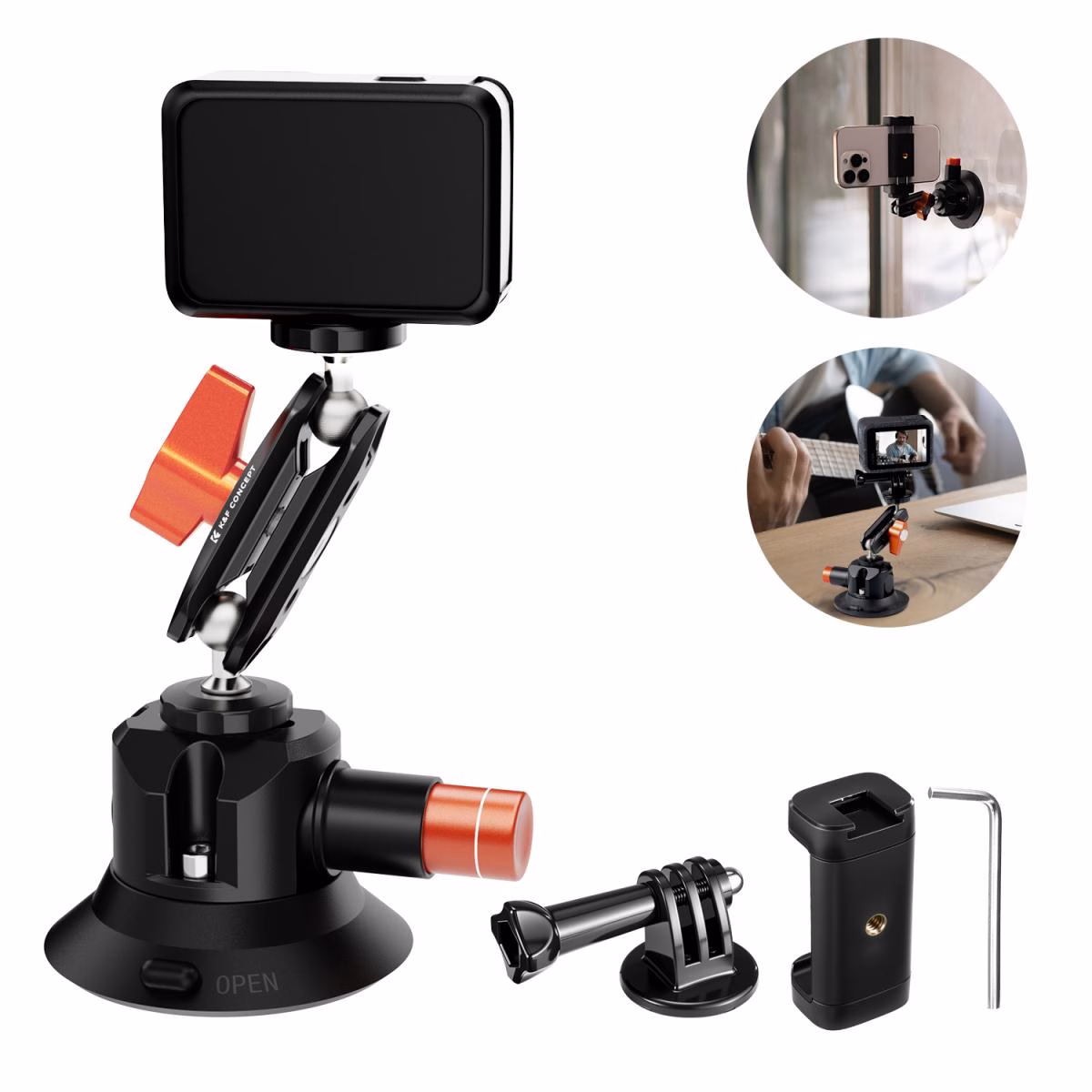

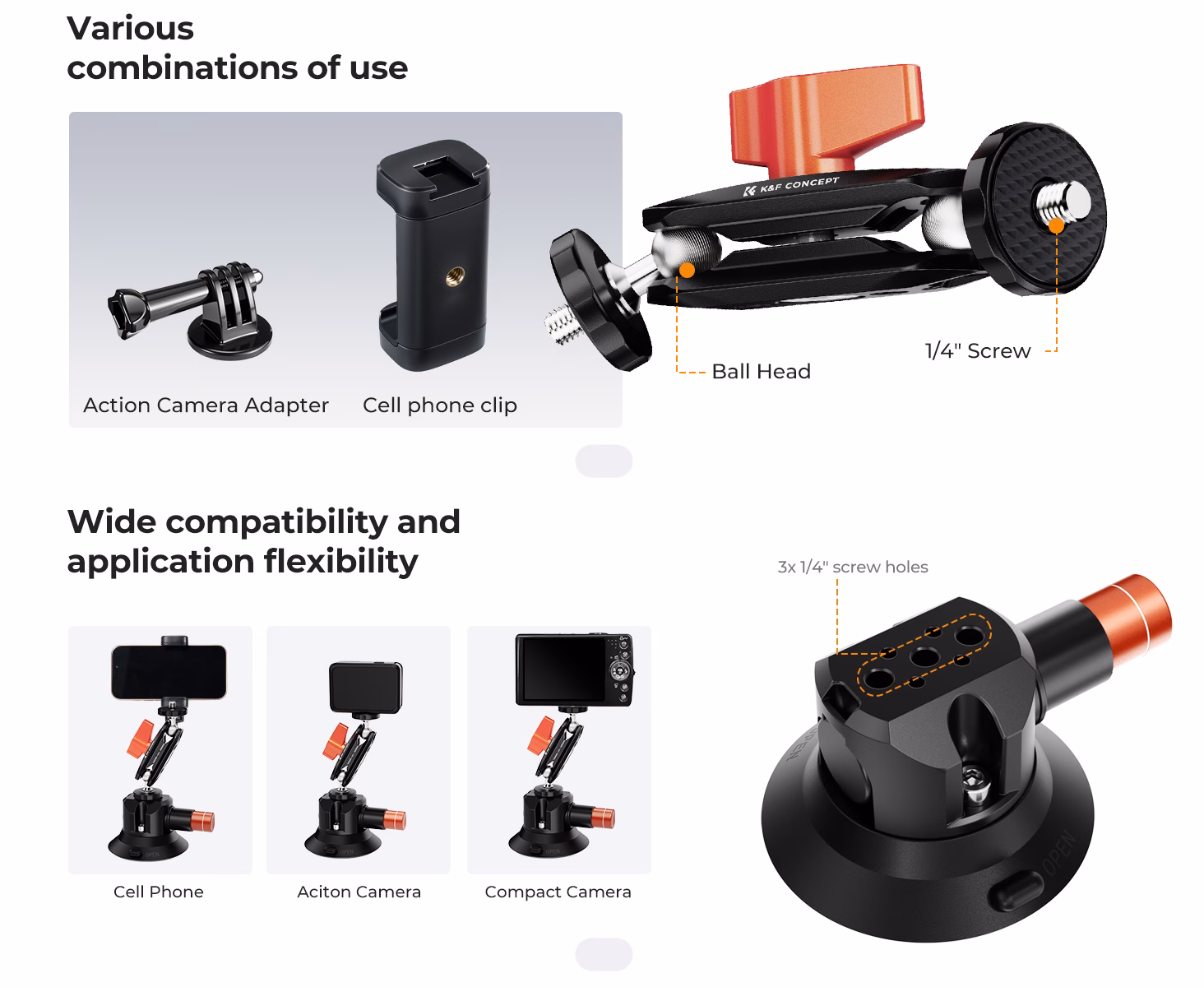

The system includes a spring-loaded phone clip and a GoPro-compatible three-prong adapter, allowing you to switch between filming with your phone, action cam and mirrorless camera using the same suction base. The phone clip fits devices with case widths up to approximately 9cm, covering most current smartphones. The action camera adapter mounts GoPro cameras, DJI Osmo Action, Insta360 and any action camera following the GoPro mounting standard. This eliminates the need to carry separate mounts for each device type, which matters when you're moving quickly between setups on location or shooting behind-the-scenes content on your phone before switching to the main camera.

Visual vacuum warning for safety

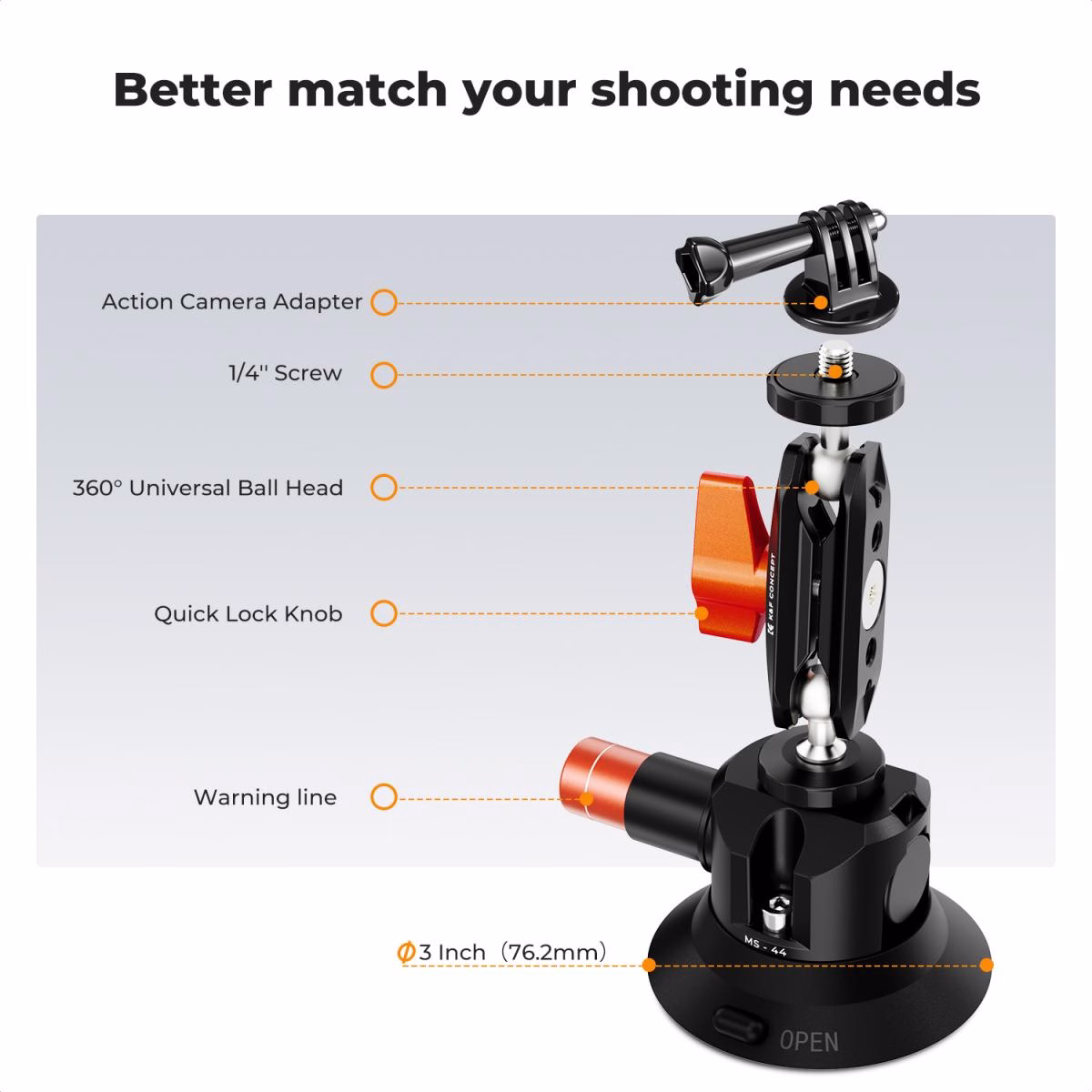

The pump body features a visual warning indicator line that shows a red band when suction pressure drops below safe operating threshold. This alerts you to re-pump before the mount fails, protecting your camera from a drop. Always take care to follow the instructions that the mounting surface needs to be flat, clean, smooth, and non-porous. Temperature changes are the most common cause of vacuum loss, a windscreen that's cold in the morning will warm up in direct sunlight, causing the air inside the suction cup to expand and weaken the seal. The indicator provides a visible safeguard that shows the manufacturer understands the failure mode buyers fear most and has designed a solution into the product. Always check the indicator before starting a take and between setups, especially during longer shoots or when working in changing environmental conditions.

Mounting interfaces and anti-rotation security

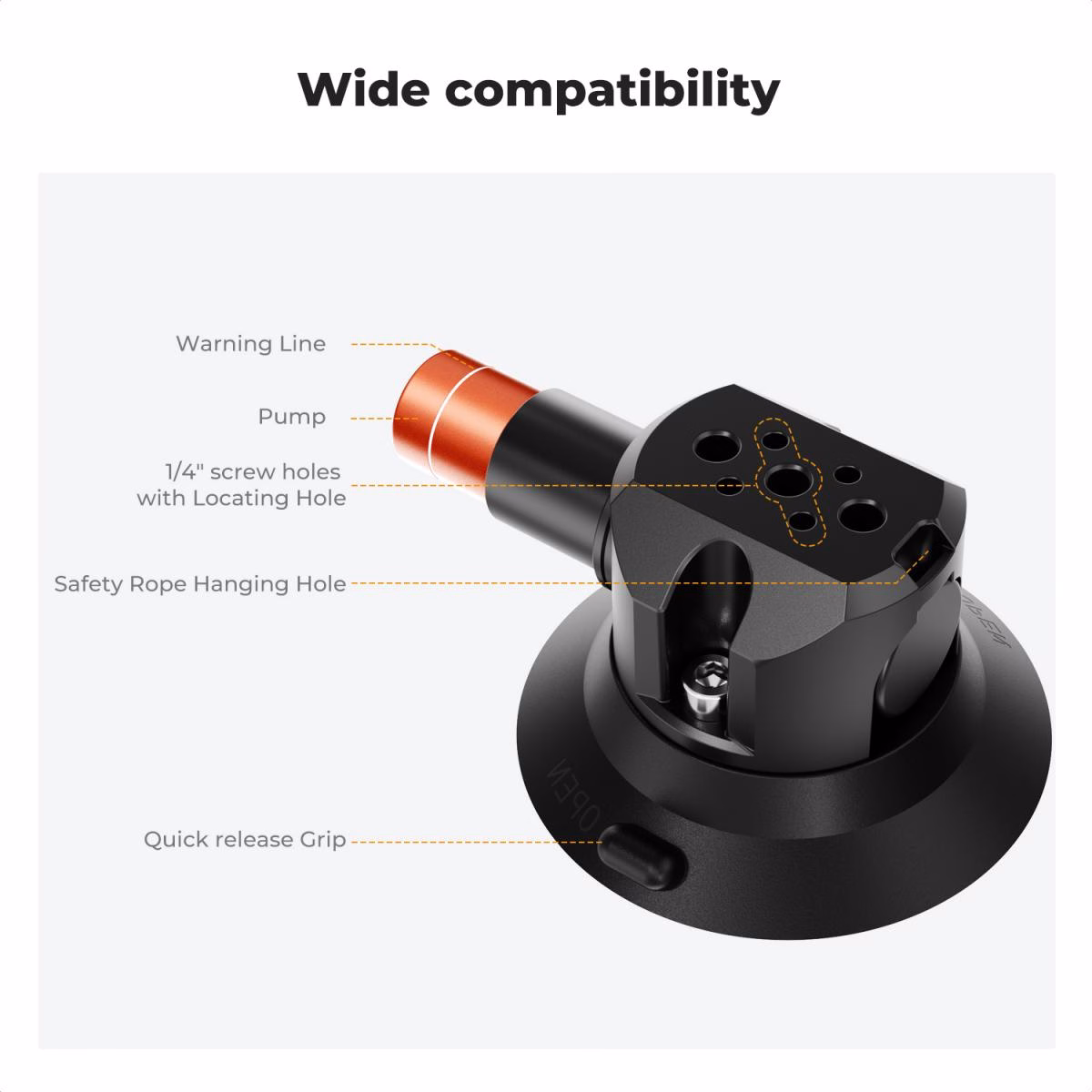

The aluminium mounting block provides three 1/4" screw holes, and ARRI locating pin holes for anti-rotation security. This means you can mount cameras, field monitors, LED panels or other accessories that have standard tripod threads without needing adapters. The ARRI locating pin holes prevent accessories from twisting under their own weight or vibration, which is critical when mounting a field monitor or light where a single-screw mount would normally drift out of alignment during a vehicle shoot. The multiple attachment points and professional rigging compatibility signal that this mount is designed for working professionals who need to integrate it into existing workflows rather than casual users looking for a basic phone holder.

Aluminium construction with protective dust cover
Unlike plastic suction mounts that feel flimsy and unreliable, the aluminium construction provides durability and stability that instils confidence when handling expensive gear. The material resists corrosion and impact damage from frequent use in the field. The included protective dust cover caps the rubber suction foot when stored, preventing grit and debris from contaminating the seal surface. This maintains a clean seal shoot after shoot, preventing the gradual loss of suction that ruins cheaper mounts after a few uses. For operators who store the mount in a camera bag between jobs, the dust cover is the difference between a mount that works reliably for years and one that fails after a handful of shoots.

Safety rope attachment for vehicle shoots
A dedicated safety rope hanging hole provides an attachment point for a secondary safety tether independent of the suction mechanism. This catches your camera if the vacuum fails, meeting insurance and safety requirements for professional vehicle shoots. Never rely on suction alone when rigging a camera to the outside of a moving car, the backup tether is mandatory to protect expensive gear and prevent road hazards. The safety hole is positioned to allow a tether line without interfering with the magic arm's articulation, so you can secure the camera and still adjust framing freely.

The K&F Concept 3" Suction Cup Camera Mount | KF31.135 is a practical solution for photographers and videographers who need a portable, adaptable mounting system for vehicle-based shoots, window-mounted time-lapses and tabletop setups. With pump-activated vacuum, multi-device support, professional mounting interfaces and a compact 237g weight, it delivers reliable stability in a daypack-carry package. Order the KF31.135 today and gain the mounting flexibility you need for your next shoot.

Frequently Asked Questions

Frequently Asked Questions:
Q: What's the maximum camera weight the magic arm can handle?
A: The magic arm supports up to 2kg, which covers action cameras, smartphones, compact cameras and lighter mirrorless bodies with kit lenses or pancake primes. Heavier DSLRs like a Canon 5D or Nikon D850, even without a lens, will exceed the arm's capacity. The suction cup itself holds 20kg horizontal and 15kg vertical, but the arm is the limiting factor for camera rigs.

Q: Can I use this on a car bonnet while the vehicle is moving?
A: Yes, but only with a secondary safety tether attached through the dedicated safety rope hole. The 20kg horizontal capacity handles the weight and vibration of a moving vehicle, but temperature changes, road vibration and airflow can weaken the vacuum over time. Check the warning indicator line every few minutes during a moving shoot and add a few pumps even before the red band appears. Never rely on suction alone for exterior vehicle mounting, insurance and professional safety standards require a backup attachment method.

Q: Will this work on textured or painted surfaces?
A: Only if the surface is smooth and non-porous. Factory car paint, gloss-finished bonnets, windscreens and polished tiles work well. Textured dashboards, matte-finish paint, pebbledash walls or any surface with visible grain or texture will not form an airtight seal. The suction cup needs a completely flat contact area to evacuate air and create the vacuum. If you can feel texture with your fingertip, the mount will not hold.

Q: How do I know when the suction is failing?
A: The pump body has a visual warning indicator line that appears red when vacuum pressure drops below safe operating threshold. If you see the red band, stop shooting and add several pumps until the line disappears. Temperature changes are the most common cause, a windscreen that's cold in the morning will warm up in direct sunlight, causing the air inside the suction cup to expand and weaken the seal. Always check the indicator before starting a take and between setups.

Q: Does the mount leave marks or residue on car paintwork?
A: No. The rubber suction foot is designed for clean removal without adhesive or residue. Push the two quick-release grip tabs inward to break the vacuum seal, and the mount lifts off without prying or scraping. The only risk is mounting to a dirty surface, grit trapped under the suction cup can scratch paint when you remove the mount. Always clean the mounting surface and the suction foot before attachment.

Q: Can I mount a field monitor or LED panel instead of a camera?
A: Yes, as long as the total weight stays under 2kg and the accessory has a 1/4" thread. Small LED panels like the Aputure AL-M9 or a 5" field monitor will work. Larger monitors or panel lights with their own battery packs usually exceed the 2kg limit. The three 1/4" screw holes and ARRI locating pin compatibility mean you can mount accessories that would normally rotate under their own weight on a single-screw setup.

Q: What's the warranty coverage on this mount?
A: 12 months from date of purchase. The warranty covers manufacturing defects in the suction mechanism, magic arm ball heads and aluminium mounting block. It does not cover damage caused by exceeding the load capacity, mounting to unsuitable surfaces or failing to use a secondary safety tether during vehicle shoots. Keep your proof of purchase and register the product with K&F Concept to activate the warranty.

Technical Specifications:
 - Suction Cup Diameter: ~8cm (3 inches)
 - Horizontal Load Capacity: 20kg
 - Vertical Load Capacity: 15kg
 - Magic Arm Load Capacity: 2kg
 - Mounting Interfaces: 1/4" with ARRI locating pin holes
 - Ball Head Rotation: 360°
 - Construction Material: Aluminium alloy with rubber suction cup
 - Suction Mechanism: Pump-activated vacuum with visual warning indicator
 - Quick Release: Pinch tab release mechanism
 - Weight: 237g
 - Warranty: 12 months
