Versatile high-reach, overhead and low-angle support system for demanding applications

The K&F Integrated Angle Arm Tripod with 28mm Ball Head is a multi-configuration aluminium support system designed for photographers who require elevated, offset, or overhead camera positioning. By combining a transverse 39 cm angle arm with a ball head, the system enables shooting angles that traditional vertical tripods cannot achieve, making it particularly well suited to product photography, tabletop and flat-lay work, macro photography, architectural shooting, and content creation requiring top-down or off-axis framing. It is intended for mirrorless and DSLR workflows where flexibility, reach, and versatility are essential.

Integrated Angle Arm and Overhead Shooting Capability
The tripod features an integrated angle arm providing 360° horizontal rotation and a 120° vertical tilt range across a 39cm length. This allows the camera to be positioned away from the tripod’s centre axis for top-down, low, macro, or tabletop shooting. In practical use, this design keeps the tripod legs out of frame during flat-lay photography, unboxing videos, and overhead instructional content. The arm allows you to get closer to content, above obstacles, top-down views or set it at any angle in between… imagine the possibilities.

28mm Ball head

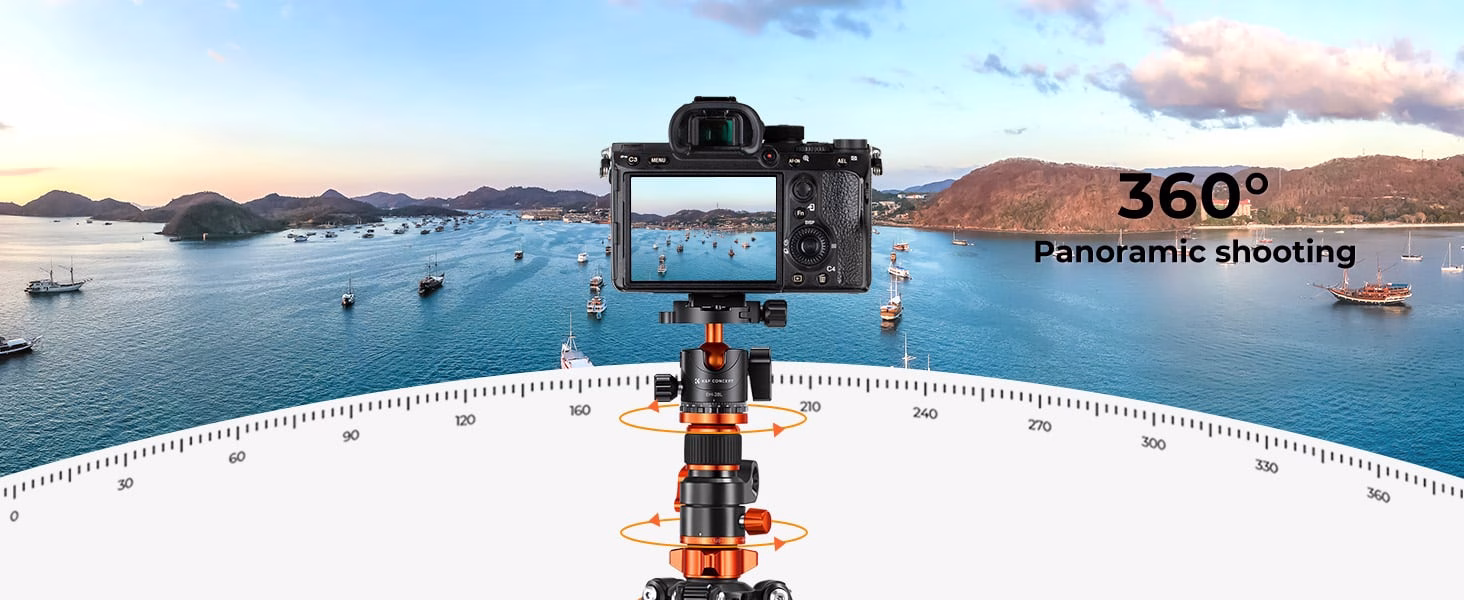

The included BH-28L ball head features a 2.8cm ball diameter, a 360-degree panoramic scale, and oil-free damping for smooth and precise camera movement. A built-in spirit level assists with accurate levelling, and the 3/8'' bottom connection ensures compatibility with supported camera equipment. It can handle setups as large as 10kg, making it well-suited to use with any combination of modern digital camera and lens configuration.

Extended Height and Modular Monopod Conversion
The centre column system allows the tripod to extend to a class-topping maximum height of 231cm, providing the elevation required for architectural photography or shooting over obstacles in crowded environments. One leg can be detached and combined with the centre column to form a monopod reaching 240cm. This configuration supports high-mobility shooting scenarios where a full tripod footprint is impractical. Making it great for working in crowded, narrow, or fast-moving shooting scenarios. Move quicker, with less footprint, without sacrificing stability.

Accessory Mounting and Structural Stability
A 3/4" threaded accessory point integrated into the tripod collar allows monitors, microphones, or other accessories like a magic arm to be mounted directly to the support structure. The aluminium construction uses 25mm diameter leg tubes to maintain rigidity while managing vibration. A gravity hook at the base of the centre column supports up to 30kg of ballast, improving stability in windy or high-traffic conditions.

This tripod system is built for creators who need one support solution to handle overhead work, high-angle shooting, and mobile field use. Its modular design reduces the need for additional rigs or stands across different workflows. With controlled movement, extended reach, and adaptable configurations, it supports efficient and predictable operation. Choose it as a reliable and versatile foundation for stills production.

Frequently Asked Questions

FAQ
Q1: What are the primary weight and payload limits for this system?
A1: The tripod and ball head are rated for a maximum payload capacity of 10kg, which is suitable for standard professional DSLR and mirrorless setups. While the gravity hook system can support an external ballast of up to 30kg to increase base stability, the camera mounting points should not exceed the 10kg limit to ensure safe operation.

Q2: Who should NOT buy this tripod?
A2: This product is not suitable for operators using heavy cinema rigs or large telephoto lenses that exceed the 10kg load capacity. Additionally, users who prioritize the lightest possible gear for long-distance hiking may find the 2.02kg aluminium alloy construction less ideal than more expensive carbon fibre alternatives.

Q3: Can I use my existing quick-release plates with the ball head?
A3: The ball head utilises a standardized Arca-Swiss interlocking plate and clamp mechanism. It is compatible with any camera body or accessory using the Arca-Swiss standard. The package also includes two compatible quick-release plates to facilitate rapid equipment switching or ensuring you have a spare.

Q4: How does the Integrated Angle Arm benefit overhead shooting compared to a standard centre column?
A4: Unlike a standard vertical column, the 39cm Integrated Angle Arm provides a 360° horizontal rotation and 120° vertical tilt. This allows the camera to be positioned at an offset from the main tripod apex, enabling top-down and macro shooting without the tripod legs obstructing the frame.

Q5: Does this tripod support the mounting of external monitors or microphones?
A5: Yes. The tripod collar features a 3/4" threaded accessory attachment point specifically for auxiliary mounting. This allows the user to attach monitors, microphones, or phones directly to the frame, enabling a multi-device setup without requiring additional floor stands.

Q6: How do I maximize stability when the tripod is extended to its 230cm maximum height?
A6: To maintain stability at the 231cm maximum height, you should utilise the gravity hook system at the base of the centre column. Suspending external ballast, such as an equipment bag, lowers the centre of gravity and minimises mechanical flex or vibrations in the 25mm aluminium alloy legs. Always use the arm position directly over a leg which limits the leverage whereby the camera may pull the system over. The arm is also marked with a “caution” and a “stop” marker warning when the arm may experience increased leverage by the equipment loaded on the head.

SPECIFICATIONS:
• Maximum height (tripod): 230cm
• Maximum height (monopod): 239cm
• Folded length: 54cm
• Total weight: 2.02kg
• Maximum payload: 10kg
• Leg sections: 4
• Leg tube diameter: 25mm
• Leg lock type: Flip locks
• Angle arm length: 39cm
• Ball head tilt range: +90° to -90°
• Ball head weight: 260g
• Gravity hook capacity: 30kg
• Accessory thread: 3/4"
• Quick-release system: Arca-Swiss compatible
• Material: Aluminium alloy
• Bubble level: Yes
• Warranty: Limited manufacturer warranty 12 Months
